Biobase 200 Test/Hour Bench-top Auto Biochemistry Analyzer Immunoassay System Biochemistry Analyzer

FOB Reference Price:Get Latest Price
$4,600.00 - $4,800.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Biochemical Analysis System, Random, Bench-top, Discrete, Fully automatic
Brand Name:
BIOBASE
Model Number:
BK-200
Place of Origin:
Shandong, China (Mainland)
Instrument classification:
Class II
Throughput:
200 Tests/Hour
Analysis Method:
End-point, Fixed-time, Rate, Turbidimetry
Certification:
CE, FDA, ISO9001, ISO14001, ISO13485
Sample Positions:
49 sample positions
Reagent Positions:
56 refrigerated reagent positions
Sample Volume:
2~70μl (0.1μl stepping)
Reagent Volume:
R1&R2: 20~350μl (1μl stepping)
Temperature Control:
37℃±0.1℃, real-time monitor
Cuvettes:
120 reusable cuvettes (optical path length 6mm)
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
International Standard Wooden Package
Port
Qingdao, Shanghai, Guangzhou
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated

biochemistry analyzer biochemistry analyzer biochemistry analyzer biochemistry analyzer biochemistry analyzer biochemistry analyzer biochemistry analyzer biochemistry analyzer biochemistry analyzer biochemistry analyzer biochemistry analyzer

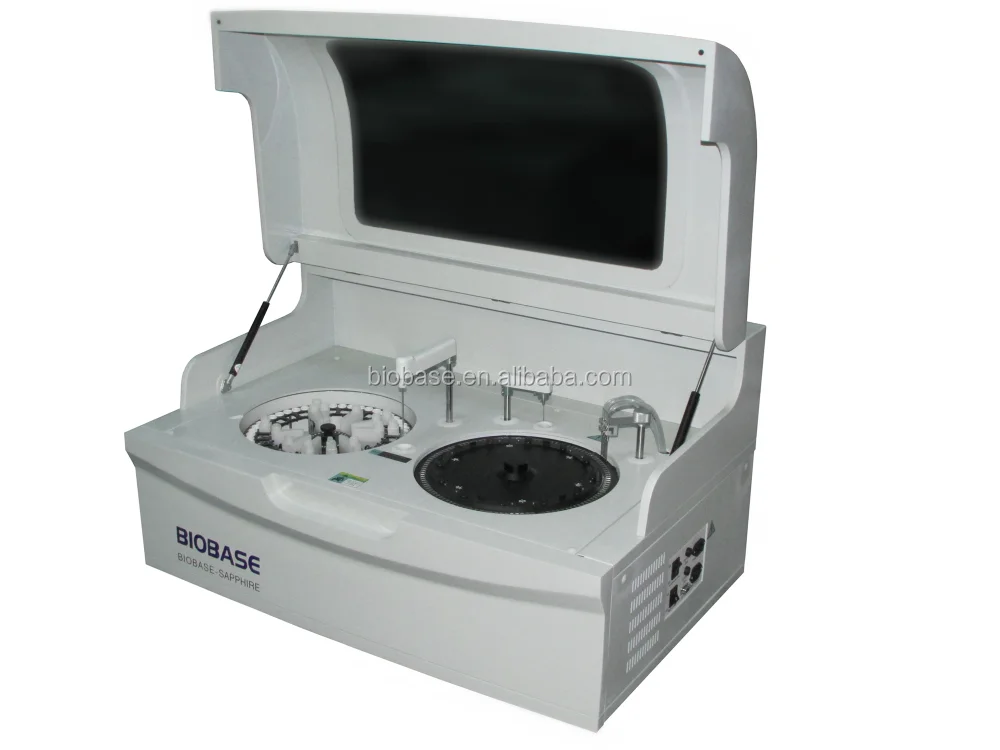

Biobase 200 Test/Hour Bench-top Auto Biochemistry Analyzer Immunoassay System Biochemistry Analyzer



Product Description



Overall

Performance

Model

 BK-200(SAPPHIRE)

Type

Random, Bench-top, Discrete, Fully automatic

Throughput

200Tests/Hour

Analysis Method

End-point, Fixed-time, Rate, Turbidimetry

Certification

CE, FDA, ISO9001, ISO14001, ISO13485

Sample & Reagent Unit

Sample Positions

 49 sample positions, including calibration, quality control and emergency

Reagent Positions

 56 refrigerated reagent positions

Sample Volume

 2~70μl (0.1μl stepping)

Reagent Volume

 R1&R2: 20~350μl (1μl stepping)

Sample& Reagent Probe

 Liquid level sensor function, anti-collision function

Probe cleaning

 Automatically wash interior and exterior

Reagent tray cooling

 2℃~8℃cooling for 24 hours

Reaction Unit

Reaction Time

 10 minutes

Temperature Control

 37℃±0.1℃, real-time monitor

Cuvettes

 120 reusable cuvettes (optical path length 6mm)

Mixer probe

 After adding reagent and sample, mix immediately

Washing

 Automatically cuvettes washing

Optical System

Light Source

 12V/30W halogen-tungsten lamp, 2000 hours lifetime

Receiver

 8 precision photo receivers

Wavelength Range

 340,405,450,510,546,578,630,700nm

Linear Range

 0.000~3.000Abs

Calibration and QC

Calibration

 One-point, two-point, multi-point, factor, logit-4P, logit-5P, spline

Quality Control

 Inserting quality control at random, with reaction curve

checking each test items clearly

Software

STAT Function

 Emergency samples can be placed in the sample tray at any time

Computer System

 Windows 7/8/10, LIS system available

Data Processing

 Reaction curve and data display function

Others

Power Supply

 AC110/220V±10%, 60/50Hz

Consumption

 300w

Package Size(W*D*H)

 1118*728*1151mm

Gross Weight

 130kg





Features:

1. 49 Sample positions.

2. 56 Reagent positions.

3. 120 Reaction cuvettes.

4. 200 tests per hour.

5. Probe anti-collision function.











Certificate:





Packaging & Shipping





Company Information

 • Company Type: Manufacture—BIOBASE



  • Profile:  Founded in 1999 and been through high and stable development for 15 years.

BIOBASE Group has set up branch offices in 24 provinces in China, and has also set up warehouses in the United States, India, Jordan, Germany and Spain. We now have long-term business partners in more than 130 countries.

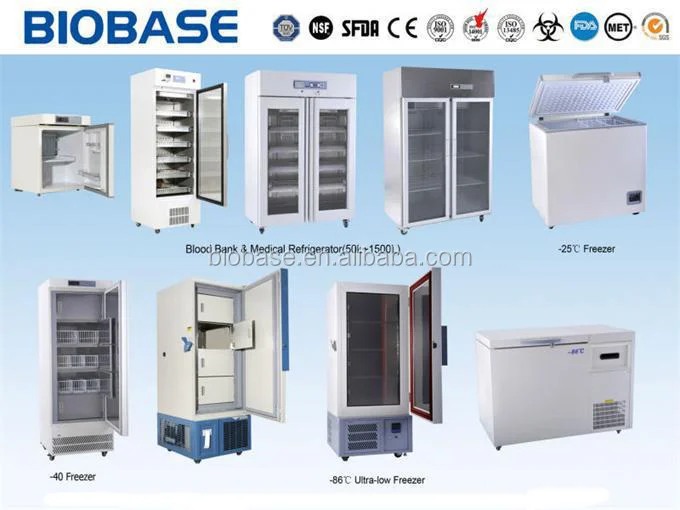

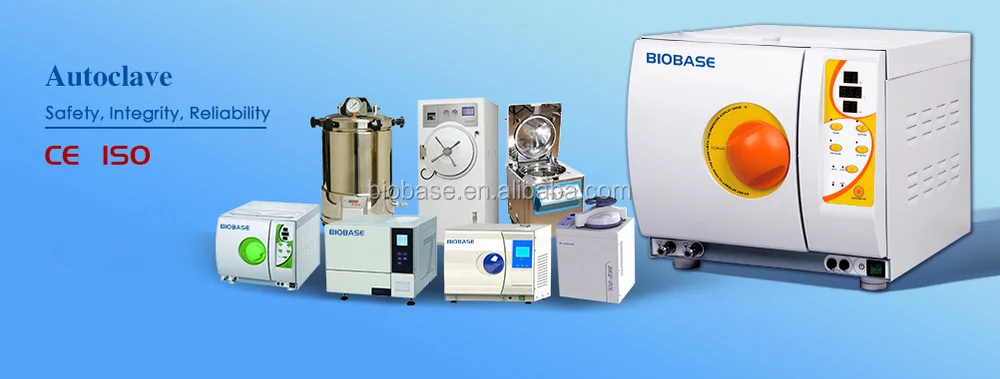

  • Main Product:  Medical Diagnosis, Biosafety Protection, Disinfection and Sterilization,

                                Water Purification System, Infant Care Products, Cold Chain Products,

                               Software Products, Clean Room Project.





  • Factory :  BIOBASE Group have completed the construction of BIOBASE first industrial park in Zhangqiu, covering an area of 80,000 square meters, second industrial park in Tangye new district, covering an area of 160,000 square meters, and USA incubator in Silicon valley, covering an area of 2000 square meters.
