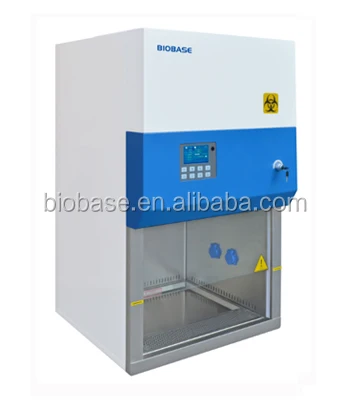

BIOBASE China Biological Safety Cabinet Lab Equipment Biological safety clean bench

FOB Reference Price:Get Latest Price
US $1,500-3,500 / Sets | 1 Set/Sets lab equipment biosafety cabinets (Min. Order)
Size:
Standard Size
Report Suspicious Activity
Overview
Quick Details
Type:
Laboratory Furniture
General Use:
Commercial Furniture
Material:
Metal
Metal Type:
Stainless Steel
Place of Origin:
Shandong, China (Mainland)
Brand Name:
BIOBASE
Model Number:
11235BBC86(3')
Display:
LCD
Work Zone:
304 SS
Max Opening:
550mm (22'')
Inflow Velocity:
0.53±0.025 m/s
Down Flow Velocity:
0.33±0.025 m/s
HEPA Filter:
Two, 99.999% efficient at 0.3μm. Filter life indicator.
Product name:
Biological safety clean bench
UV Lamp:
15W*1-30w
Motor:
One ECM motor, 110V& 220V acceptable, Speed adjustable
Front Window:
Motorized
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden box
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 45 To be negotiated


BIOBASE China NSF Certified Biological Safety Cabinet Lab Equipment Biological Safety Clean Bench






Protection :

Three protection: operator, sample and environment.

Airflow system: 70% air recirculation, 30% air exhaust

A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.

Advantage:

1. Motorized front window.

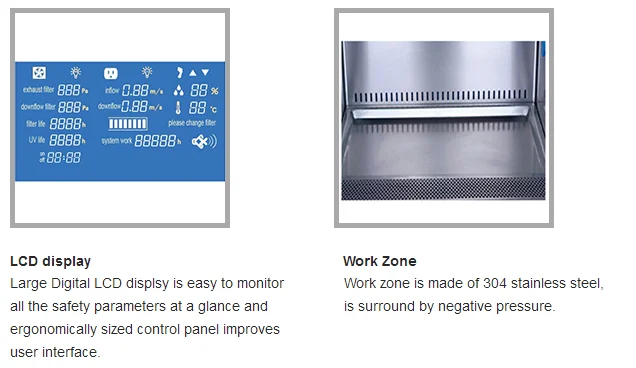

2. Large LCD display, all information displayed.

3. Automatic air speed adjustable with filter block.

4. Side & back wall is made up of single piece stainless steel.

5. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.

6. Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.

Parameter of the biosafety cabinets

Model

11235BBC86(3')

BSC-4FA2(4')

11236BBC86(6')

External Size(W*D*H)

1087*775*2265mm

1383×775×2295mm

1873*775*2295mm

Internal Size(W*D*H)

910*600*660mm

1210×660×660mm

1700*600*660 mm

Work Surface Height

750mm

Max Opening

550mm (22’’)

Tested Opening

Safety height 200mm (8’’)

Airflow Volume

Inflow

349m3/h(205cfm)

465m3/h(275cfm)

649m3/h(382cfm)



Down flow

64%:638m3/h(375cfm)

64%:868m3/h(498cfm)

64%:1190m3/h(700cfm)



Exhaust

36%:359m3/h(211cfm)

36%:488m3/h(287cfm)

36%:669m3/h(394cfm)

Front Window

Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV

HEPA Filter

Two, 99.999% efficiency at 0.3um, filter life indicator

Filter Guard Type

Aluminum alloy frame

Noise

NSF 49≤61 dB/EN 12469≤58 dB

Illumination

≥1000Lux

Display

LCD Display

Waterproof Socket

2, Total consumption:≤500W

Tap

Water tap*1, Gas tap *1

Ground Resistance

≤ 0.10Ω

Power Supply

AC220/110V±10%, 50/60Hz ±1Hz, Full load Amps: 9A, BTU/Hr: 1689

Consumption

300W

400W

500W

Alarm

Abnormal airflow velocity; Filter change; Front Window over height

Motor

One ECM motor, 110V& 220V acceptable, Speed adjustable,

high efficiency and low power consumption

Material

Working area: 304stainless steel/  Frame and Decorative Plate: cold-rolled steel

with anti-bacteria power coating

UV Lamp

18W

30W

40W



Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination

Standard Accessory

Fluorescent lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve,

Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks

Optional Accessory

Armrest, Airflow tester, Formalin fumigation sterilizer,Infrared sterilizer,

Adjustable base stand, Remote control

Package Size (W*D*H)

1250*1080*1840mm

1540*1080*1900mm

2020*1080*1900mm

Gross Weight

270kg

334kg

363kg

Standard Accessory

Fluorescent lamp             1pc

UV lamp                         2pcs

Base stand                     1pc

SS water & gas taps        1pc

Drain valve                     1pc

Waterproof sockets         1pc



Optional Accessory

Armrest                                    1pc

Airflow tester                            1pc

Formalin fumigation sterilizer        1pc

Infrared sterilizer                        1pc

Adjustable base stand                1pc

Remote control                         1pc
